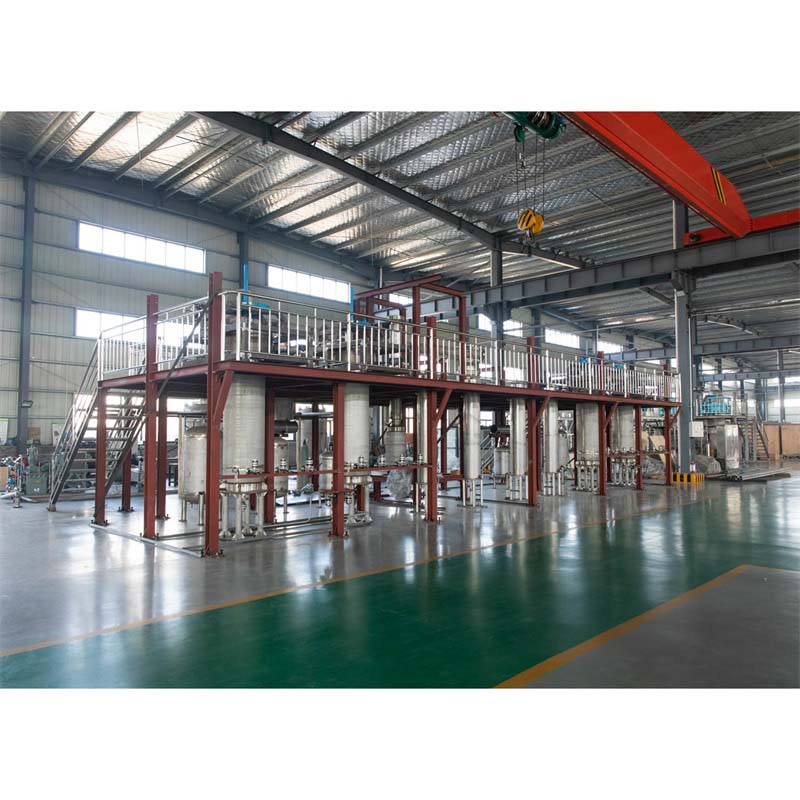

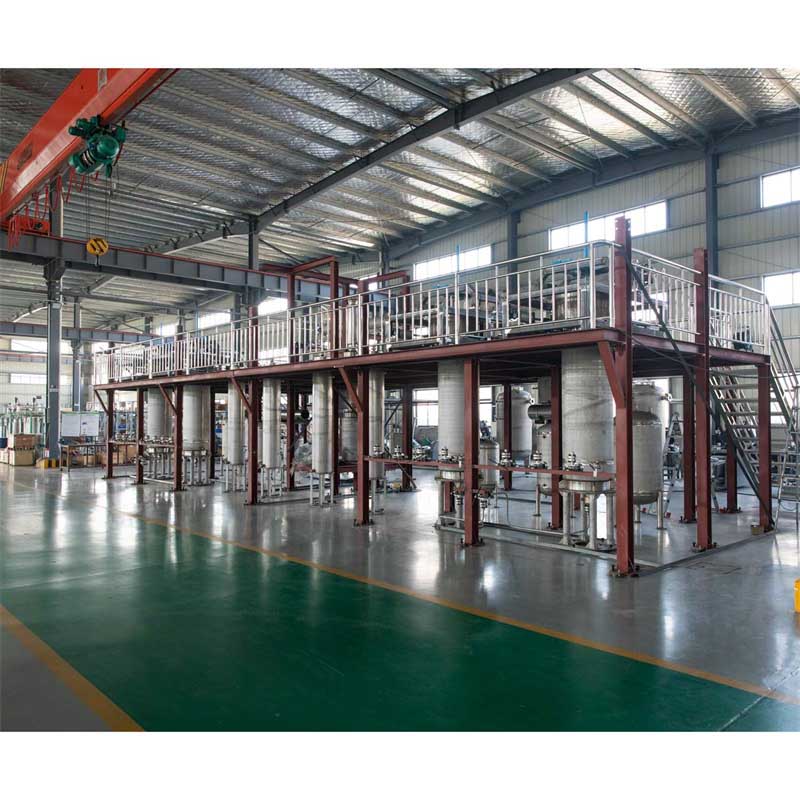

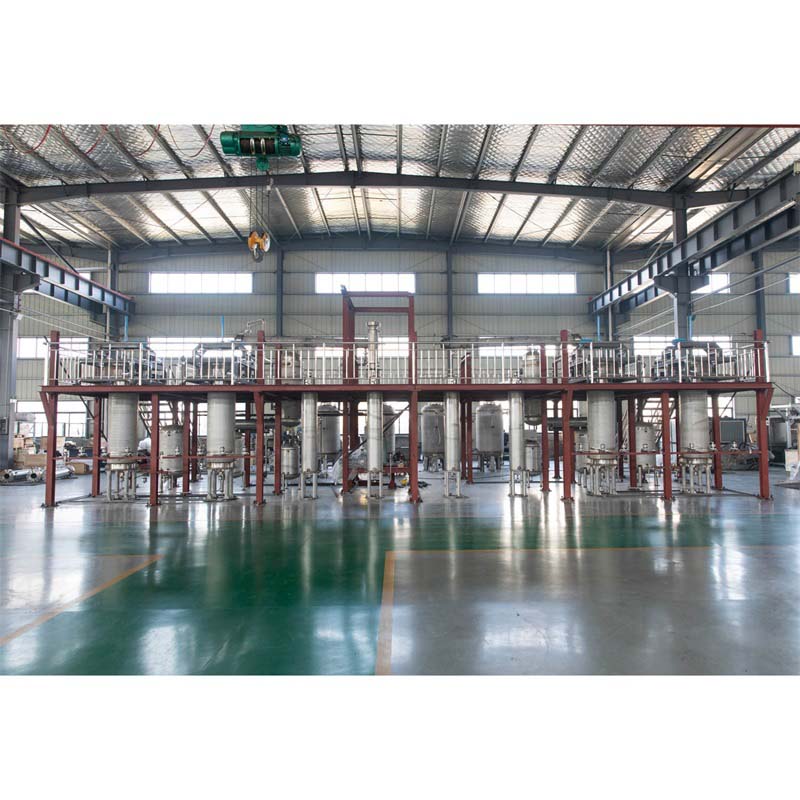

1000L supercritical co2 extraction machine with recification column for Chili extraction

Product Code: HMX-F83HT

● Volume of extractor: 250L*4
● Max working pressure of extractor: 38Mpa
● Max working pressure of separator: 18Mpa
● First stage separator: 200L
● Second stage separator: 200L
● Rectification column: 7.5 meters, 5 stages, 40 Mpa
● Purifying filter: 24L/12Mpa
● Co-solvent flow: 0~200L/h
● Flow of CO2: 4000L/h
● Power supply: 3phase, 380V/50Hz or 480V/60Hz



The supercritical fluid technology is a new-type separation technology in modern chemical separation. The supercritical extraction takes CO2 as the solvent, as CO2 fluid under supercritical state has larger density and dielectric constant, larger dissolvability against substances, which can change abruptly when temperature and temperature change therefore it has not only the selection if dissolvability against some substances, the separation of the solvent with the extracted substances is also easily. The supercritical CO2 extraction is specially suitable for extraction of fat-soluble and heat-sensitive substances with high boiling point.
Take CO2 as the solvent to make extraction and purification upon a lot of products such as biological products, foodstuff and medicines.

Supercritical CO2 Extraction Machine
Model Capacity Pressure Temperature Power CO2 Flow Dimension(mm)
HSFE-0.5 0.5L*1 50Mpa 75℃ 10Kw 50L/h 2400*2500*1600
HSFE-1 1L*1 50Mpa 75℃ 10Kw 50L/h 2400*2500*1600
HSFE-5 5L*1 50Mpa 75℃ 12Kw 50L/h 2500*2500*1600
HSFE-10 5L*2 40Mpa 75℃ 16Kw 50L/h 2500*2500*1600
HSFE-10 10L*1 40Mpa 75℃ 16Kw 50L/h
HSFE-15 15L*1 40Mpa 75℃ 20Kw 100L/h 3000*2500*1700
HSFE-20 10L*2 40Mpa 75℃ 20Kw 100L/h 3000*3000*2400
HSFE-20 20L*1 40Mpa 75℃ 20Kw 100L/h
HSFE-30 15L*2 40Mpa 75℃ 30Kw 200L/h 3500*3000*2500
HSFE-50 25L*2 40Mpa 75℃ 45Kw 400L/h 5000*5000*4200
HSFE-100 25L*4 40Mpa 75℃ 58Kw 600L/h 5800*5000*4200
HSFE-100 50L*2 40Mpa 75℃ 58Kw 600L/h 5000*5000*4500
HSFE-120 30L*4 40Mpa 75℃ 60Kw 800L/h 6800*6000*4500
HSFE-150 50L*3 40Mpa 75℃   1000L/h
HSFE-200 50L*4 40Mpa 75℃ 90Kw 1000L/h 7500*7000*4500
HSFE-300 50L*6 40Mpa 75℃ 115Kw 1000L/h 8500*9000*4500
HSFE-300 150L*2 40Mpa 75℃ 110Kw 1200L/h 6000*5000*6000
For capacity above 300L, will be custom made.5
