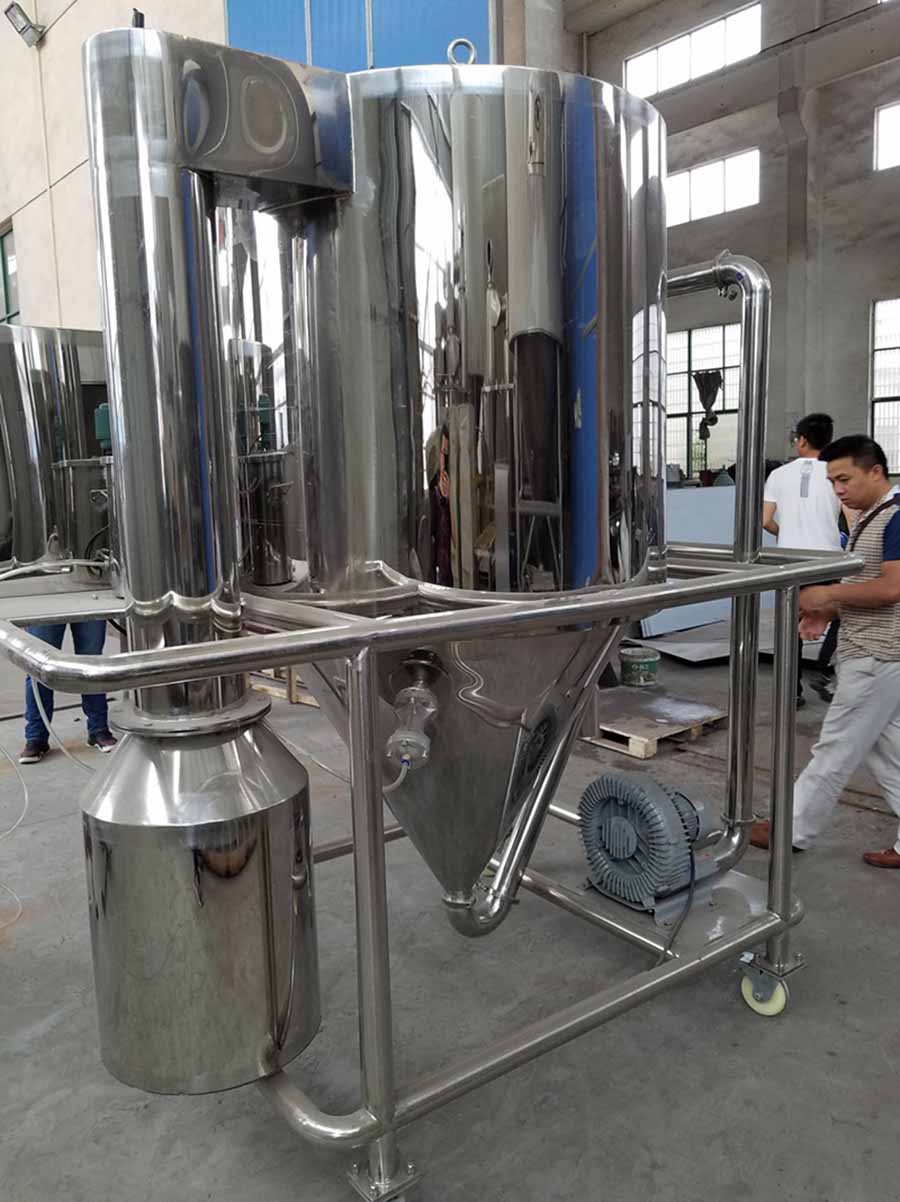

English 5L Spray dryer
Product Code:
5B001
A.Working Principle of LPG-5 Spray Dryer
Air is filtered and heated into the dryer at the top of the air dispenser, and the hot air was evenly into the drying room in the spiral. The liquid passing through the top of the tower high-speed centrifugal atomizer (rotational) was sprayed into the extremely fine mist liquid beads, and flows into contact with hot air in a very short period of time, which can be dried into a finished product. Finished continuously from the bottom of the drying tower and cyclone. Exhaust gases were evacuated by a fan.
B.Features of LPG-5 Spray Dryer
1. The drying speed is very fast. After centrifugal spray, surface area of material liquid increased greatly, which can evaporate 95-98% of the water under high temperature air flow. Drying time only need seconds.
2. This equipment adopts flow pattern type spray drying. Droplet temperature is not very high during the drying process, which ensured the good quality of final products.
3. Due to the drying process is completed in the air. And granular product substantially can be maintained in spherical droplets, with good dispersion, fluidity and solubility.
4. Our equipment has a simplified production process, and easy to operate.
| No. | Item | Parameter |
|---|---|---|
| 1 | Model | LPG-5 |
| 2 | Inlet Temperature | 140-350 ℃, automatic control |
| 3 | Out Temperature | 70-90 (℃) |
| 4 | Max water Evaporation (kg/h) | 5 |
| 5 | Driving form of centrifugal nozzle | Compressed air drive |
| 6 | Rotating speed (r.p.m) | 25000 |
| 7 | Diameter of spray disc(mm) | 50 |
| 8 | Heating source | Electricity |
| 9 | Max. power of electric heater (kw) | 9 |
| 10 | Overall dimensions(L*W*H by M) | 1.8ｘ0.93ｘ2.2 (in accordance with actual condition) |
| 11 | Recovery rate of dry powder (%) | ≥95 |
