English 6 inch distilled oil wiped film
Product Code:
B04

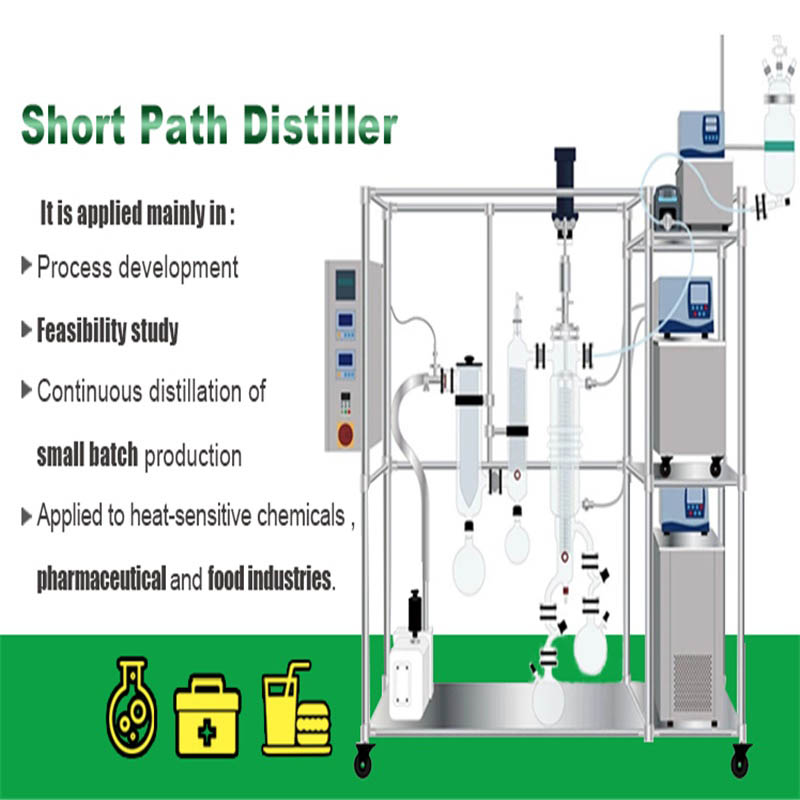

Short path distillation /molecular distillation is a special liquid-liquid separation technology, which is different from traditional distillation on the difference boiling point. This is a kind of distillation in high vacuum environment, for the difference of material molecular movement free path, was carried out in the heat sensitive material or high boiling point material distillation and purification process. Short path distillation is mainly used in chemical, pharmaceutical, petrochemical, spices, plastics, oil and other fields.
| Model | Effective Evaporation Area | Internal Condensation Area | Outer Condensing Area | Barrel Inside Diameter | Constant Pressure Feeding Funnel Volume | Processing Flow | Motor Power | Max Rotation Speed |
|---|---|---|---|---|---|---|---|---|
| HSPD-60(b) | 0.05 | 0.03 | 0.2 | 60 | 1.5 | 0.1∽2.0 | 120 | 450 |
| HSPD-80(b) | 0.1 | 0.15 | 0.25 | 80 | 1.5 | 0.3∽4.0 | 120 | 450 |
| HSPD-100(b) | 0.15 | 0.2 | 0.3 | 100 | 1.5 | 0.5∽5.0 | 120 | 450 |
| HSPD-150(b) | 0.25 | 0.4 | 0.6 | 150 | 1.5 | 1.0∽8.0 | 120 | 450 |
| HSPD-200(b) | 0.35 | 0.5 | 0.6 | 190 | 1.5 | 1.5∽10.0 | 200 | 300 |
| HSPD-230(b) | 0.5 | 0.65 | 0.6 | 220 | 1.5 | 2.0∽15.0 | 200 | 300 |
Refine CBD or THC crude oil to get distilled oil.
