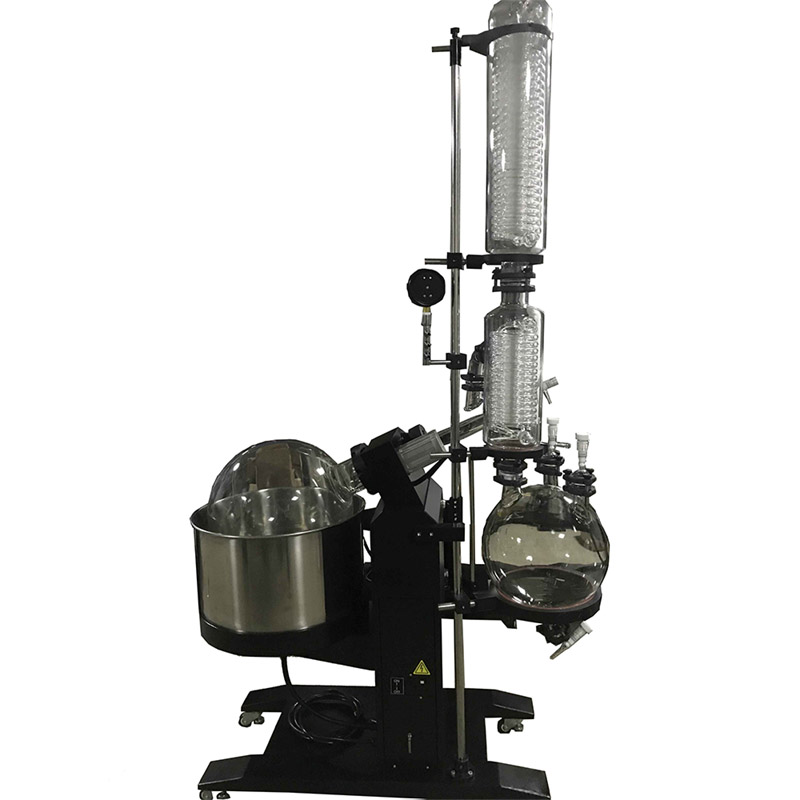

1 liters 100 liters automatic lifting rotary evaporator

Product Code: 123D03

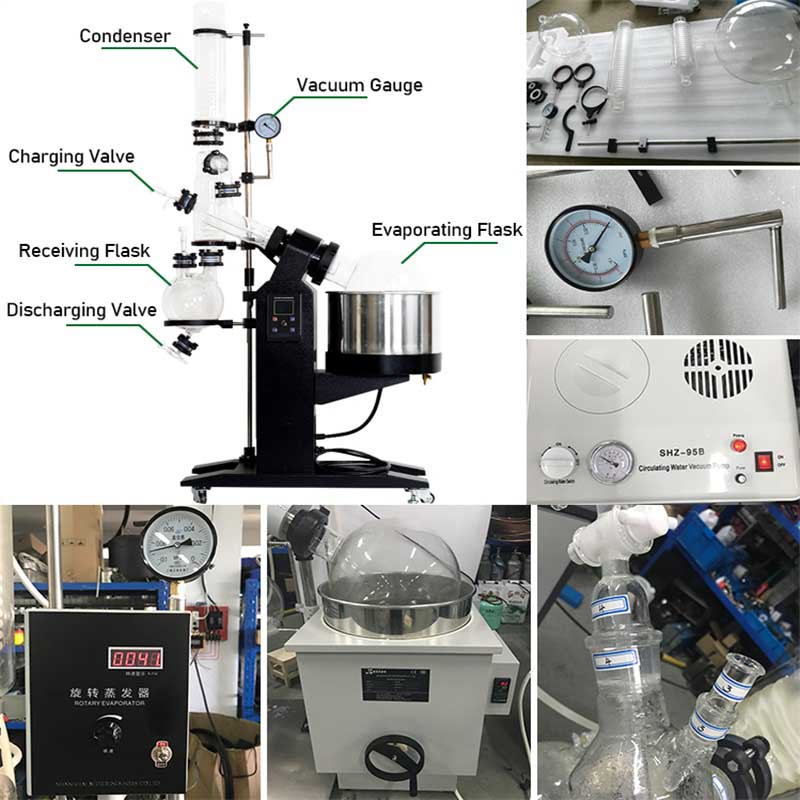

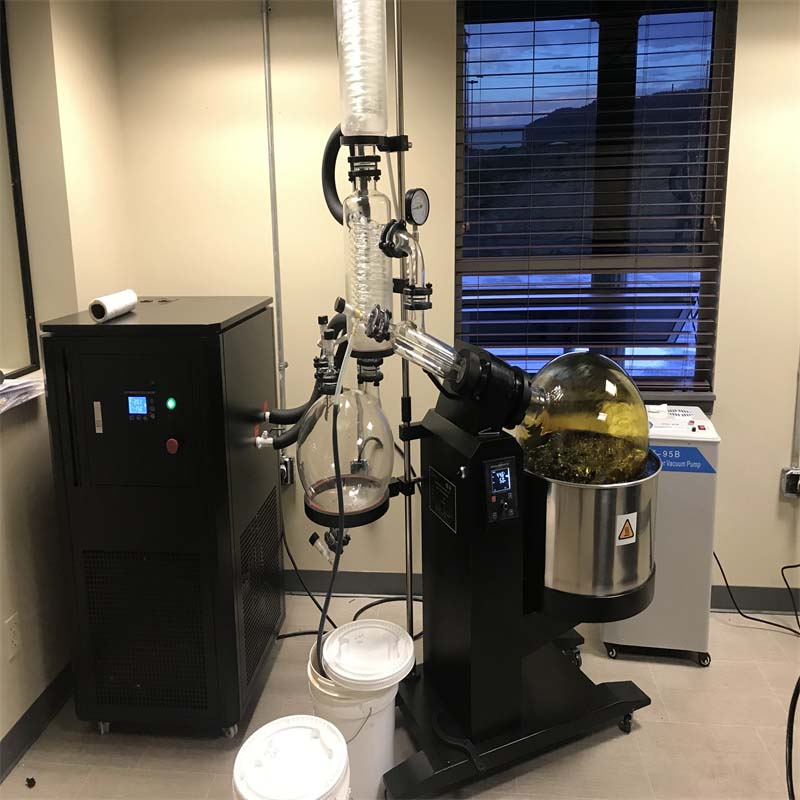

Rotary evaporator is an extraction system that using the different boiling point of material to separate target material from a mixture. It always match with vacuum pump and chiller:Vacuum pump can keep the system at better vacuum degree, and lower the boiling point of the liquid. Chiller can cooling the condenser, improve the efficiency of collection.

Model HRE-10 HRE-20 HRE-30 HRE-50
Rotary Flask (L) 10 20 30 50
Collection Flask (L) 5 10 20 20
Evaporating Speed(H2O) >3L/h >5L/h >7L/h >9L/h
Condenser Surface (㎡) 0.57 1 1.2 1.5
Condenser Pipe Vertical, main condenser+vice condenser
Motor Power(W) 180 250
Rotation Speed (RPM) 3~110rmp,digital display 3~90rmp,digital display
Bath Power(KW) 3 6
Reachable Vacuum Rate <133pa (1.33mbar, 1 torr)
Static Temp. Control Range& Wave(℃) Water:Rt-99  oil:Rt-180 ±0.2
Power  220v/50hz, ac motor (atexoptional)
Glass Material Gg-17(3.3)high borosilicate glass
PTFE Sealing Standard
PTFE Dump Valve Standard
Vacuum Meter Standard
Heating Bath Stainless steel, motor-driven lift
Bath Size(L*W*H) 950*850*900 950*850*900 1000*900*950 1060*620*1200

Rotary evaporator is widely used in the process like concentration, refining, separation, crystallization, etc. And mainly applied in bio-chemical, pharmaceutical & fine-chemical trades.
