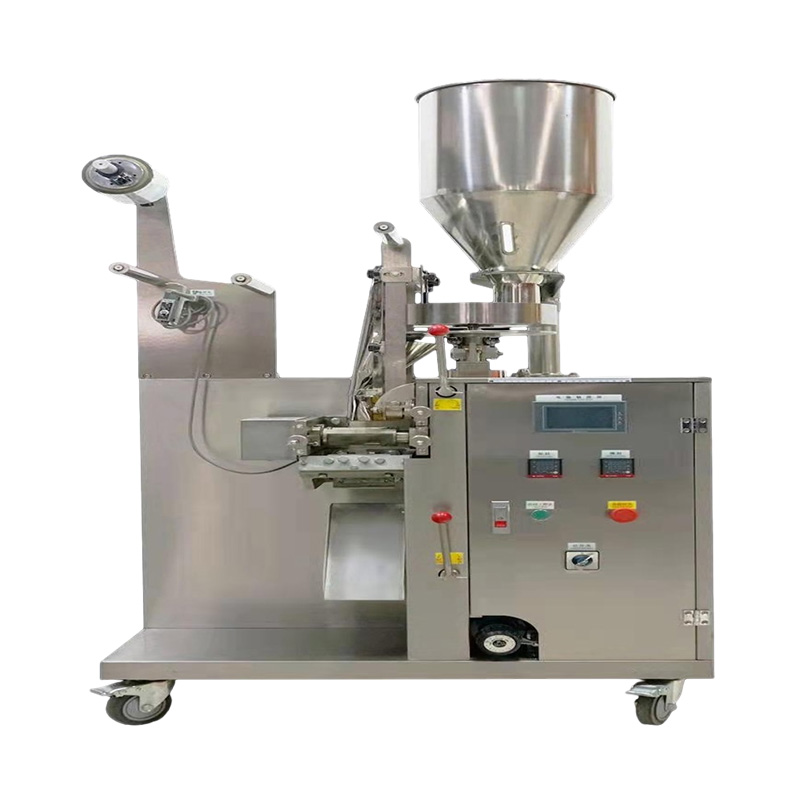

English Continuous Granule Packing Machine
Product Code:
BB-2342
● Packaging capacity： 3 - 40 g /1.6 - 33 ml
● Packaging speed: 40-80 packages per minute (depending on material characteristics)
● Sealing form three side sealing three side sealing
● Bag size: 40 - 110 mm (width 30 - 80 mm special size customized)
● Power supply: 220V / 50Hz / 1.5kw
● Operating weight: about 320 kg
● Boundary dimension 900 * 750 * 1750 (mm)Flow of CO2: 200L/h
Continuous granule packing machine is applicable to the packaging of small particles such as instant noodles, soup bag, desiccant, powder, broken tea, etc. It can automatically complete bag making, measuring, filling, sealing, cutting, counting and other functions. This machine adopts touch screen operation PLC to control the change of bag length without changing gear.
| No. | Name |
| 1 | Display screen (4.3 inches) |
| 2 | PLC |
| 3 | Temperature control |
| 4 | Stepping motor |
| 5 | Switch |
| 6 | Proximity switch |
| 7 | Solid-state relay |
| 8 | Main motor |
| 9 | Reducer |
| 10 | Encoder |
