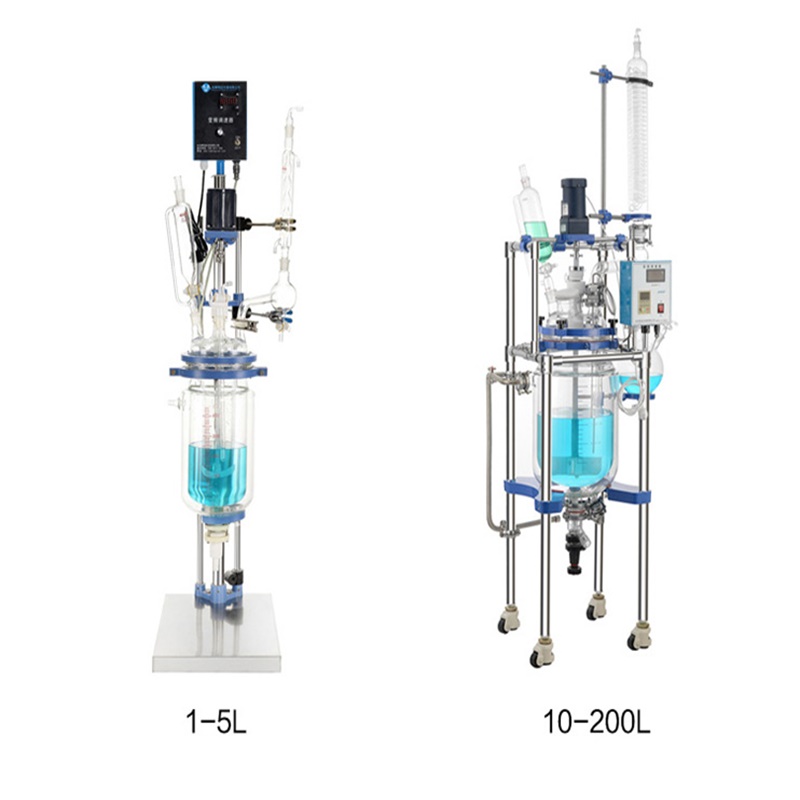

English 1 liters 200 liters whole set of jacket glass decarboxylation reactor
Product Code:
564B05

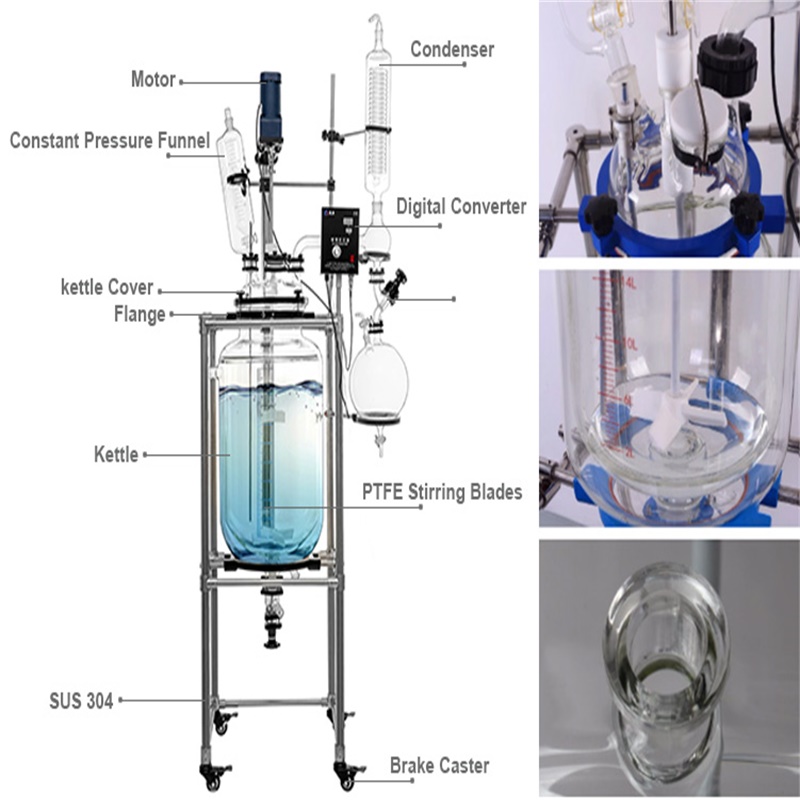

The lab jacketed chemical stirred glass reactor is designed double-level glass. The reaction material is put into the inner, which can be stirred. In the interbed with different cold and hot medium (refrigerating fluid, hot water and hot oil), do some heat circulation and cooling reaction. Under the constant temperature and ordinary pressure, as well as negative pressure, stirring reaction can be done in seal glass reactor, also back-flow, distillation, etc.
| Model | HGR-10 | HGR-20 | HGR-30 | HGR-50 | HGR-80 | HGR-150 |
|---|---|---|---|---|---|---|
| Volume(L) | 10 | 20 | 30 | 50 | 80 | 150 |
| Jacket Volume(L) | 6 | 8 | 10 | 13 | 16 | 23 |
| Reactor Material | High quality borosilicate glass 3.3 | |||||
| Supporting Frame Material | Stainless steel 304 and coated aluminum | |||||
| Neck No.On Cap | 6 | |||||
| Rated Torque(N.cm) | 177 | 177 | 177 | 177 | 285 | 550 |
| Stirring Power(w) | 90w (3 : 1) | 120w (3:1) | 250w (3:1) | 750w (3:1) | ||
| Increase power under low speed | Increase power under low speed | |||||
| Rotating Speed (RPM) | 0 ~ 600 (customizable) | |||||
| Power Supply | 110v or 220v or 380v / 50 ~ 60 hz | |||||
| Discharge | Ptfe bottom discharge valve | |||||
| Working Temp Range | -80 ~ 250ºc | |||||
| Pressure Range | 20 mbar to atmosphere | |||||
| Max Jacket Pressure | 0.5 bar | |||||
| Dimension (mm*mm*mm) | 520*520*2000 | 560*560*2100 | 760*560*2300 | 560*560*2450 | 610*610*2400 | 760*610*2920 |
