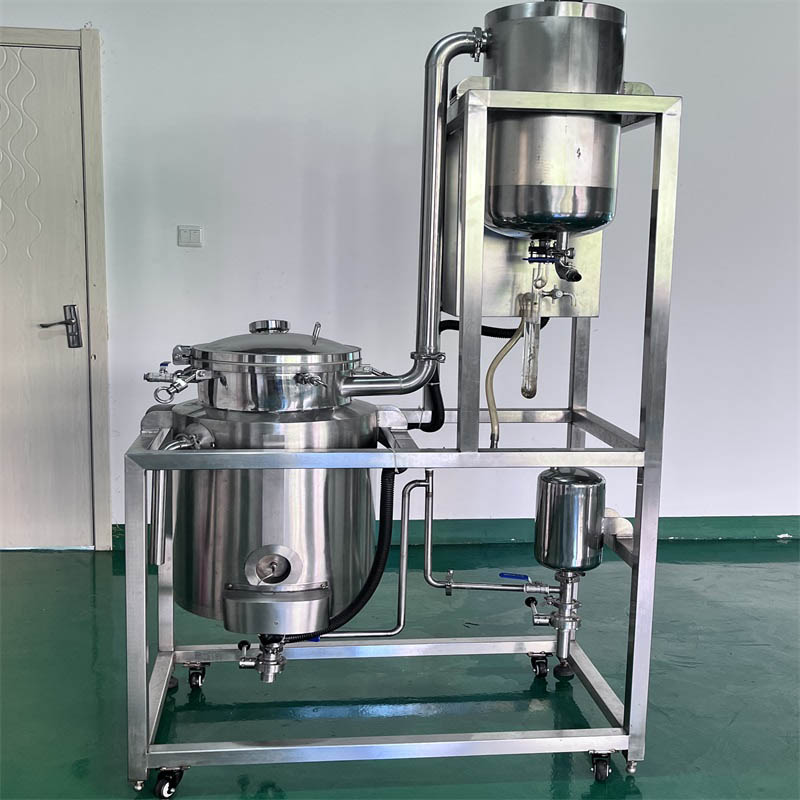

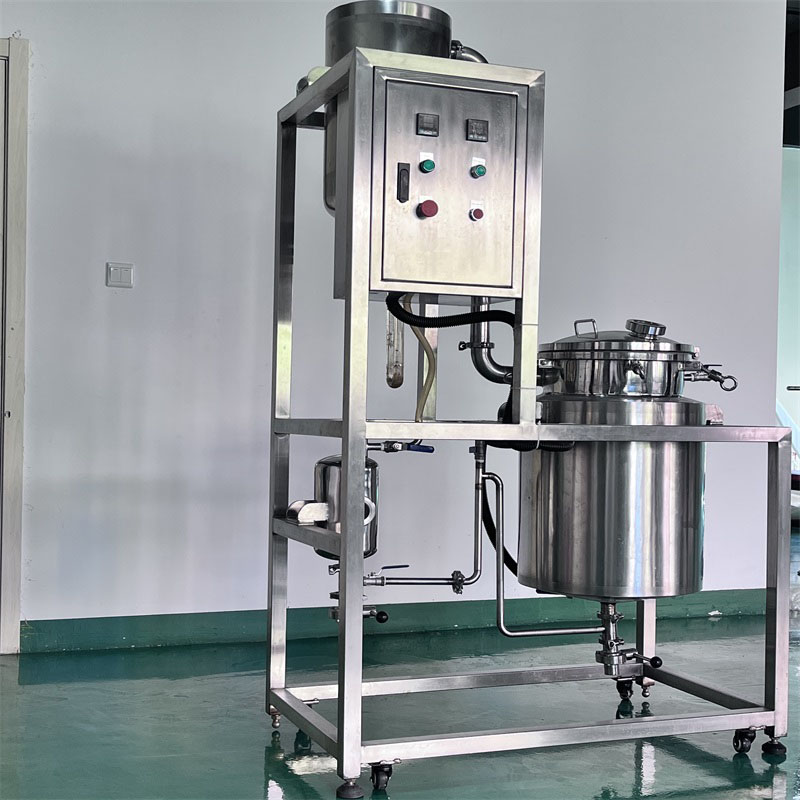

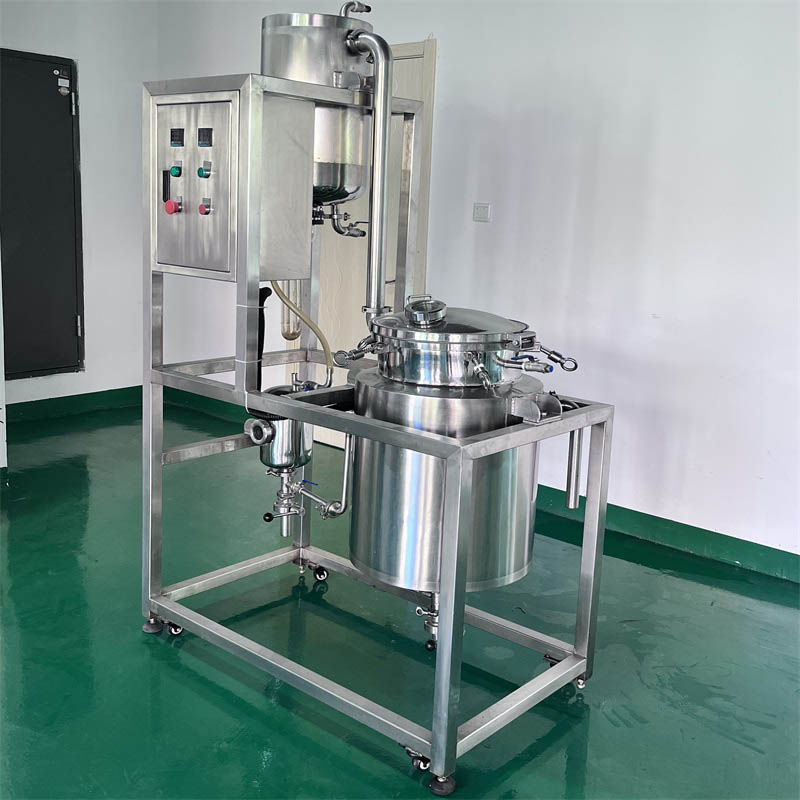

English 50L essential oil distiller
Product Code:
5664B04
● Extractor: 50L
● Condensation area: 0.85 m2
● Heating area: 0.5 m2
● Oil-water separator: Boronized glass material
● Pure dew storage tank: 3L
● Heating mode: Electric

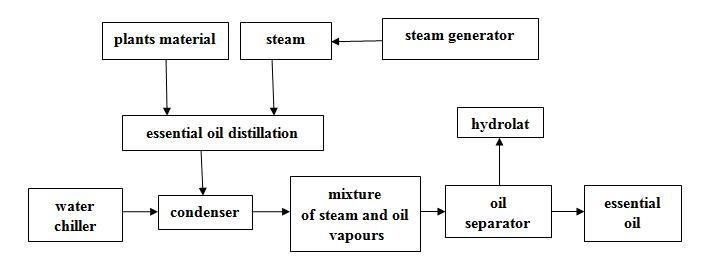

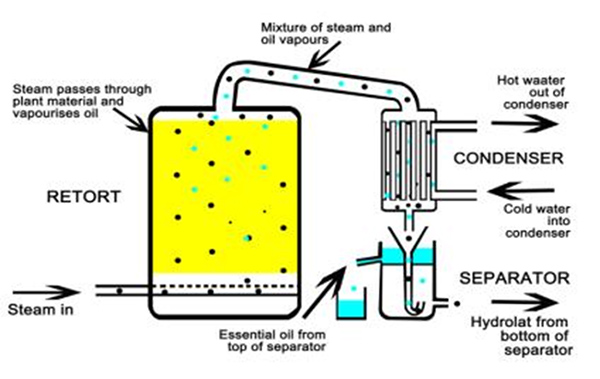

● This unit is popular in extraction of essential oil from plants,flowers,leaves,wood, such as rose,lavender,eucalyptus leaves,lemongrass,citronella,sandalwood, agilawood etc.by steam distillation or water distillation, the steam passes through plants material and vaporizes oil,mixtures of steam and oil vapors go into the condenser.after the cooling,oil formed.this is the ideal device for you to make essential oil no matter for laboratory use or batch production.
● By steam-distillation to reach the extraction of essential oils.
● Easy operation. One people can operate this machine easily .
● High efficiency. Using indirect heating of heat- transfer oil, it can quickly reach 100℃high temperature under the conditions of cleanness, safety and atmospheric pressure. If required, with vacuum pump, the extraction speed of essential oils will be more faster.
● Compact structure.
| Model | Power | Material | Capacity | Diameter of condenser | Heating area of extraction tank | Condensing area of condenser | ||
|---|---|---|---|---|---|---|---|---|
| HEC10 | 4 | SUS304/SS316L | 10 | 102 | 0.3 | 0.7 | ||
| HEC20 | 4.5 | 20 | 102 | 0.4 | 0.75 | |||
| HEC30 | 5 | 30 | 133 | 0.45 | 0.8 | |||
| HEC50 | 9 | 50 | 133 | 0.5 | 0.85 | |||
| HEC100 | 17 | 100 | 133 | 1.05 | 0.95 | |||
| HEC150 | 18 | 150 | 133 | 1.45 | 1.25 | |||
| HEC200 | 20 | 200 | 133 | 1.85 | 1.5 | |||
| HEC300 | 25 | 300 | 133 | 1.95 | 2.00 | |||
| 500L~5000L large equipment can be customized | ||||||||
| Model | HEC500 | HEC1000 | HEC1500 | HEC2000 | HEC3000 | HEC4000 | HEC5000 | |
| Volume ofDistillation tank(l) | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | |
| TemperatureDisplay | Digital temperature control system, with steam stop valve, drain valves, steam traps, etc. | |||||||
| Cooling waterCirculation pump | Cooling water circulation pump, 20tons/h, the cooling water through the pipe into the condenser | |||||||
| Crane system | 750kg | 1000kg | 1000kg | 1000kg | 1500kg | 2000kg | 2000kg | |
| Console | Carbon steel rust treatment table | |||||||
| Boiler | The gas coal electric boilersAccording customer local conditions to select | |||||||
| Flowers | Rose; jasmine; lavender; chamomile; ylang ylang; geranium; neroli; clary sage; achillea millefolium; osmanthus; peony; marigold; laurel; honeysuckle; violets. |
| Leaves | Tea tree; eucalyptus; mint; patchouli; juniperberry; cypress; pine needles; spearmint; basil. |
| Roots | Ginseng; ginger; angelica; garlic; vetivert; angelica root; mugwort; borneol camphor. |
| Grasses | Rosemary; verbena; lemongrass; melissa; nardostachys; tarragon; caraway; dill; valerian; houttuynia; wintergreen; evening primrose. |
| Wood | Sandalwood; cedar wood; rosewood; agarwood; Birch; holly; camphor; melaleuca; sassafras. |
| Resins | Frankincense; myrrh; benzoin; fir tree; amyris; Elemi. |
| Bark | Cinnamon. |
| Citrus | Bergamot; grapefruit; lemon; orange; lime; tangerine . |
| Seeds | Cloves; almonds; cardamom; carrot seed; pomegranates; pepper; capsicum ; fennel. |
