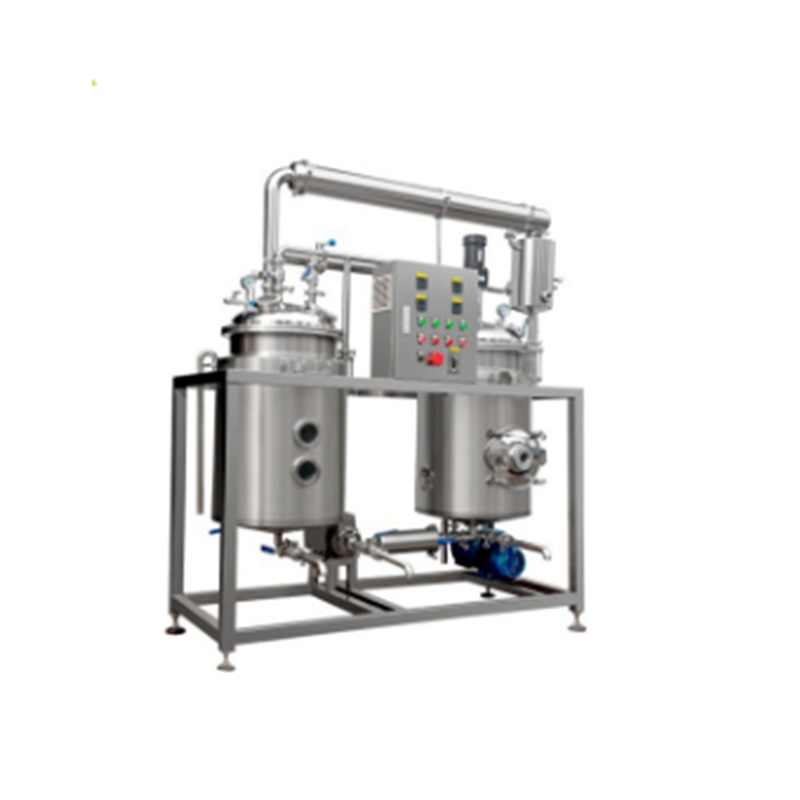

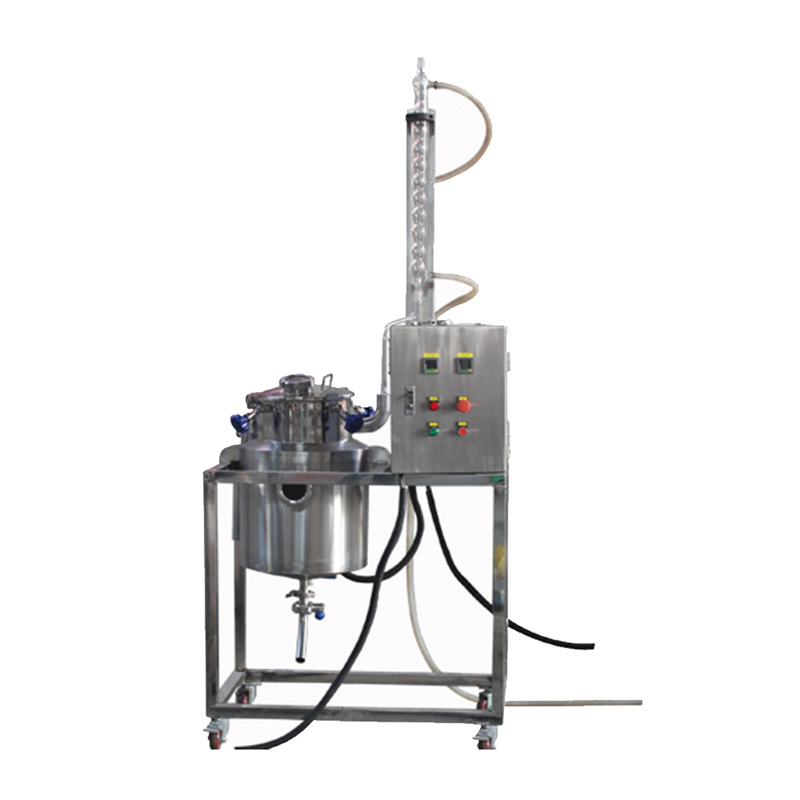

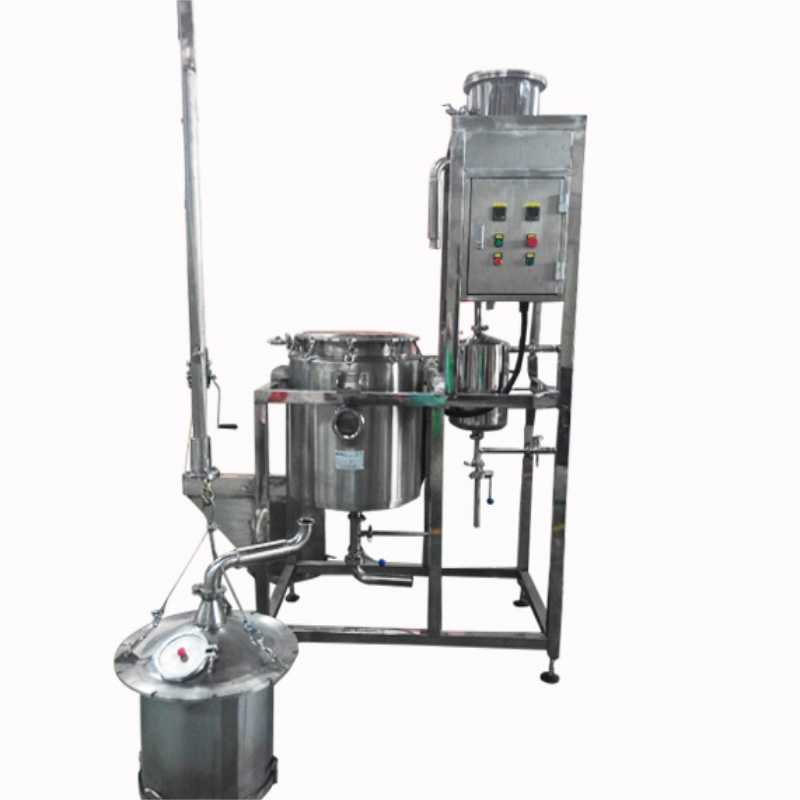

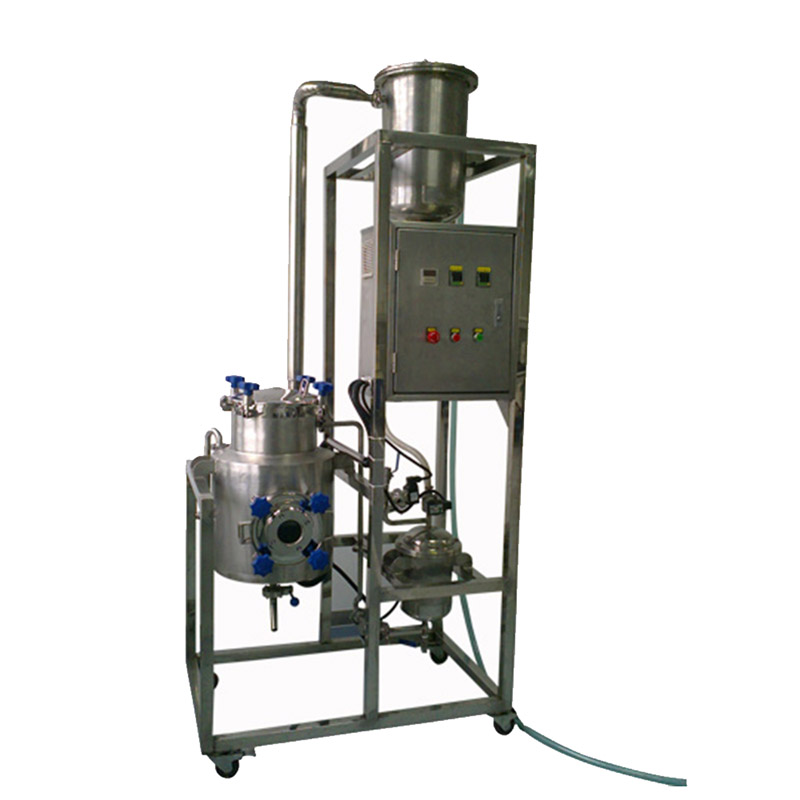

English 10 liters 6000 liters essential oil extraction machine
Product Code:
BX2440X
This unit is popular in extraction of essential oil from plants, flowers, leaves,wood, such as rose, lavender, eucalyptus leaves, lemongrass, citronella, sandalwood, agilawood etc. By steam distillation or water distillation, the steam passes through plants material and vaporizes oil, mixtures of steam and oil vapors go into the condenser. After the cooling,oil formed. This is the ideal device for you to make essential oil no matter for laboratory use or batch production.
| Model | Power (KW) |
Material | Capacity | Diameter of condenser (mm) | Heating area of extraction tank (m2) | Condensing area of condenser (m2) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HEC10 | 4 | SUS304 | 10 | 102 | 0.3 | 0.7 | ||||||
| HEC20 | 4.5 | 20 | 102 | 0.4 | 0.75 | |||||||
| HEC30 | 5 | 30 | 133 | 0.45 | 0.8 | |||||||
| HEC50 | 9 | 50 | 133 | 0.5 | 0.85 | |||||||
| HEC100 | 17 | 100 | 133 | 1.05 | 0.95 | |||||||
| HEC150 | 18 | 150 | 133 | 1.45 | 1.25 | |||||||
| HEC200 | 20 | 200 | 133 | 1.85 | 1.5 | |||||||
| HEC300 | 25 | 300 | 133 | 1.95 | 2 | |||||||
| 500l~5000l large equipment can be customized | ||||||||||||
| Model | HEC500 | HEC1000 | HEC1500 | HEC2000 | HEC3000 | HEC4000 | HEC5000 | |||||
| Volume of Distillation tank(L) |
500 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | |||||
| Temperature Display |
Digital temperature control system, with steam stop valve, drain valves, steam traps, etc. | |||||||||||
| Cooling water Circulation pump |
Cooling water circulation pump, 20tons/h, the cooling water through the pipe into the condenser | |||||||||||
| Crane system | 750kg | 1000kg | 1000kg | 1000kg | 1500kg | 2000kg | 2000kg | |||||
| Console | Carbon steel rust treatment table | |||||||||||
| Boiler | The gas coal electric boilers | |||||||||||
| According customer local conditions to select | ||||||||||||
| Category | Materials suitable for steam distillation etc |
|---|---|
| Flower | Rose, lavender, ylang ylang, chamomile, neroli, geranium etc. |
| Plants | Rosemary, citronella, lemongrass etc. |
| Citrus | Lemon, orange, bergamot, grapefruit,lime etc |
| Leaves | Eucalyptus leaves, mugwort, patchouli, peppermint, pine needle etc. |
| Wood | Sandalwood, agarwood, cedarwood,wintergreen etc. |
| Resin | Frankincense, myrrh etc. |
| Others | Cinnamon，pepper, fennel, ginger etc. |
